PERFORMANCE:

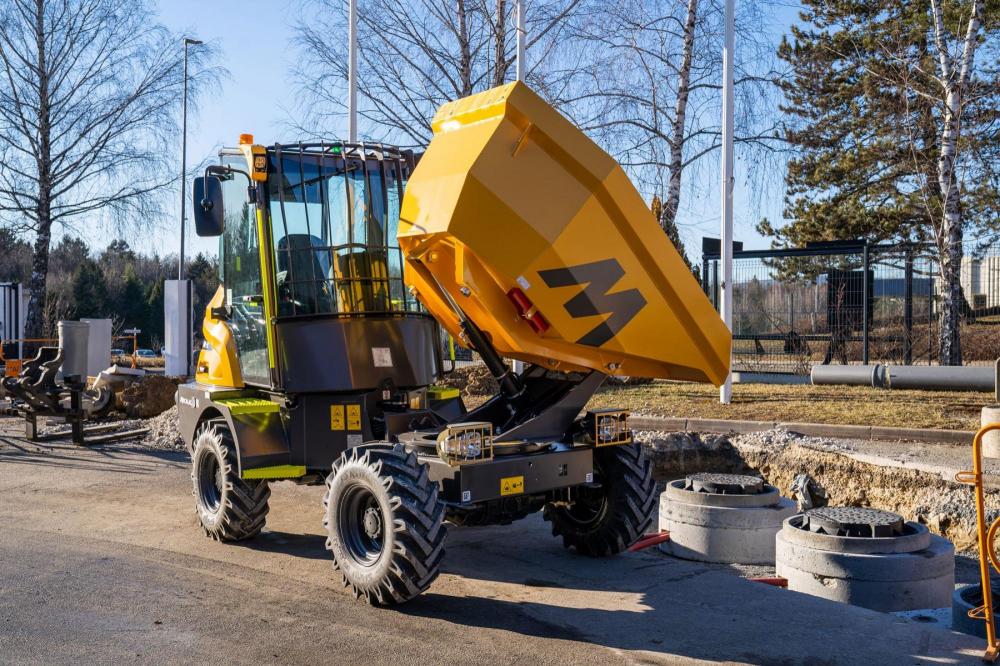

The 3.5MDX is a compact and manoeuvrable machine, providing an effective solution in carrying high payloads in confined spaces, any ground conditions and for a large variety of applications.
COMFORT:
This new model adopts Mecalac’s proven MDX cab with optional Air-conditioning to provide an outstanding level of operator well-being in any weather conditions. Like all MDX models, the unique cabin layout minimises vibration and noise, while ergonomic controls and an adjustable seat provide a relaxed environment when working for extended periods.
SAFETY:
Alongside the cab conforming to ROPS/FOPS, safety has been prioritised by incorporating MDX design characteristics which results in easier and safer access to the machine, outstanding all around visibility and a higher level of operator protection in any situation.
Skip type: Front / Swivel
Payload (Kg): 3500 kg (7,716 lb)
Maximum skip capacity (Heaped): 2.2 m³ (2.88yd³)
Total operating weight: 2840 kg (6,261 lbs) / 2990 kg (6,592 lbs)
Transmission: Hydrostatic
Engine power (kW/hp): 37 kW (50 hp) - Stage V
Travel speed: 20 km/h (12 mph)
Operators environment: ROPS/FOPS cab
Overall width: 1846 mm (6’1”) / 1957 mm (6’5”)
Overall length: 3821 mm (12’6”) / 4012 mm (13’2’’)
Overall height: 2663 mm (8’9’’)
Dumping height (Skip tipped): 248 mm (10”) / 841 mm (2’9’’)
